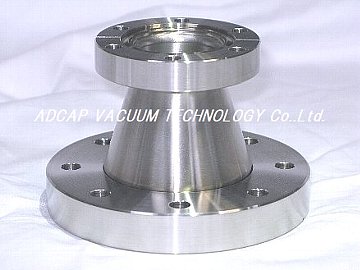

CF-CF Conical Reducer

■ Conical Reducing for better conductance coefficent

■ Stainless 304

■ Smaller flange is rotatable as standard

■ Bolt holes of both flanges are through holes







サイズ 規格／型式

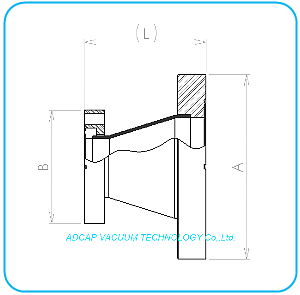

Main A Sub B（回転） L(面間）
CF70 CF34 78 CRC35-C16R
CF114 CF70 75 CRC63-C35R
CF152 CF114 112 CRC100-C63R
CF203 CF152 175 CRC150-C100R
